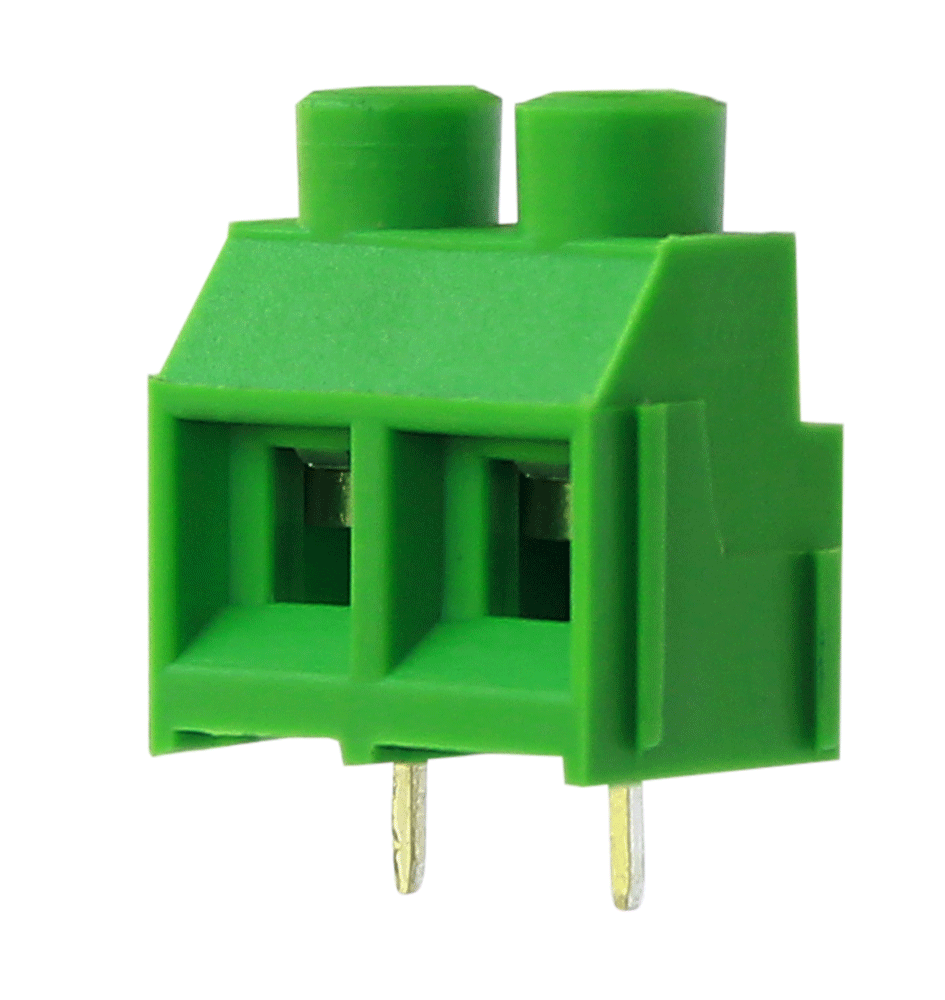

Vital 950/2 & 950/3 PCB Terminal block

Vital 950/2 , 950/2C PCB Connector.
Specifications:

  • Pitch - 9.50mm
  • Nominal Rating - 30A/600V
  • Moulded Material - PA66 - UL94 V0 or V2
  • Terminal - Tin Platted Copper Alloy
  • We also Deal in PHOENIX - MKDS 5 - 9.50,DEGSON - DG636-9.52 ,DECA -MB910-952,DINKLE - EK950V,XINYA - XY636-9.52,KF - KF950,TIANLI - TL606V

Also Available :

  • Vital 950/2 PCB Terminal Block
  • Vital 950/3 PCB Terminal Block
  • Vital 950/2C PCB Terminal Block
  • Vital 950/3C PCB Terminal Block
  • Vital 950RA/2 PCB Terminal Block
  • Vital 950RA/2C PCB Terminal Block
  • Vital 950RA/3 PCB Terminal Block
  • Vital 950RA/3C PCB Terminal Block

Vital Electrocomp is one of the leading manufacturers of terminal blocks and connectors for PCB applications.

Vital PCB Connector Distributer in India.PCB Terminal Block supplier in Delhi.


We sell Good Quality PCB Terminal Block.Good Quality PCB Connector.Good Quality Screwed PCB Connector.

vital-9502-9503-pcb-terminal-block

CONNECTORS/TERMINALS BLOCKS

Brand:
Vital
Sub Category:
Screw Type Terminal Blocks
Pitch:
9.50mm
Part Number:
950
Number of Poles / Contact:
2 & 3
Nominal rating:
30A/600V
Wire size:
3.00 mm²
Maximum Torque:
0.60 - 0.65 Nm
Screw:
M3 * 0.50mm
Wire Cage:
Nickel Plated Brass
Terminals:
Tin Platted Copper Alloy
Other Brand which we can arrange against order:
PHOENIX - MKDS 5 - 9.50,DEGSON - DG636-9.52 ,DECA -MB910-952,DINKLE - EK950V,XINYA - XY636-9.52,KF - KF950,TIANLI - TL606V
Specification:
Vital 950/2 , 950/2C PCB Connector. Specifications: Pitch - 9.50mm Nominal Rating - 30A/600V Moulded Material - PA66 - UL94 V0 or V2 Terminal - Tin Platted Copper Alloy We also Deal in PHOENIX - MKDS 5 - 9.50,DEGSON - DG636-9.52 ,DECA -MB910-952,DINKLE -
Rated Current:
30A
Rated Voltage:
300V.
Dielectric Strength:
> 2Kv
Colour Available:
Green
Application:
PCB
Brand / Make:
VITAL
