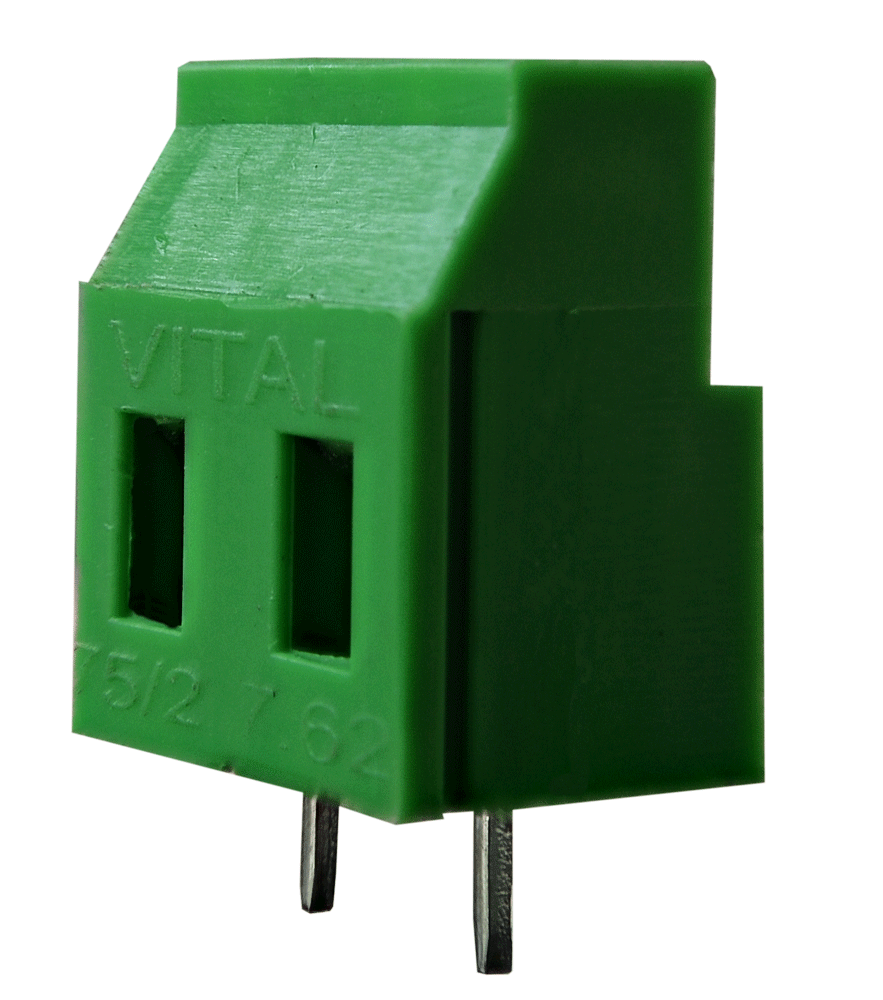

Vital 762/2 & 762/3 PCB Terminal Block

Specifications:
1. Pitch: 7.50.
2. Voltage: 450v.
3. Current: 24A.
Available in 2 and 3 pins.

Available Also:


  • Vital 762/2 PCB Connector.
  • Vital 762/3 PCB Terminal Block.
  • Vital 762/2C PCB Connector.
  • Vital 762/3C PCB Terminal Block.
  • Vital 762RA/2 PCB Connector.
  • Vital 762RA/3 PCB Terminal Block.
  • Vital 762RA/2C PCB Connector.
  • Vital 762RA/3C PCB Terminal Block.

Vital Electrocomp is one of the leading manufacturers of terminal blocks and connectors for PCB applications.

Vital PCB Connector Distributer in india.PCB Terminal Block supplier in India.


Good Quality PCB Terminal Block.Good Quality PCB Connector.

vital-7622-7623-pcb-terminal-block

CONNECTORS/TERMINALS BLOCKS

Brand:
Vital
Sub Category:
Screw Type Terminal Blocks
Pitch:
7.62 mm
Part Number:
762
Number of Poles / Contact:
2 & 3
Nominal rating:
15A/450V or 24A/300V
Wire size:
2.5 mm²
Maximum Torque:
0.50 - 0.60 Nm
Screw:
M3 * 0.50mm
Wire Cage:
Nickel Plated Brass
Terminals:
Tin Platted Copper Alloy
Other Brand which we can arrange against order:
PHOENIX , DECA , XINYA
Specification:
Specifications: 1. Pitch: 7.50. 2. Voltage: 450v. 3. Current: 24A. Available in 2 and 3 pins. Available Also: Vital 762/2 PCB Connector. Vital 762/3 PCB Terminal Block. Vital 762/2C PCB Connector. Vital 762/3C PCB Terminal Block. Vital 762RA/2 PCB Conne
Rated Current:
24A
Rated Voltage:
300V.
Dielectric Strength:
> 2Kv
Colour Available:
Green
Application:
PCB
Brand / Make:
VITAL
