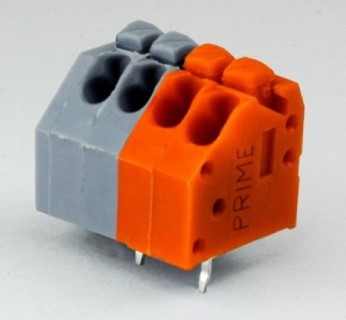

Prime PFT-250-3.54 Push Type Terminal Block
Technical Description:
| Current/Voltage Rating | 6A / 250V AC |
| Test Class | IEC 60947 - 7 - 1 |
| Insulation Resistance | > 1000M ohms at 500V DC |
| Dielectric Strength | >3 KV Min. |
| Moulded Material | Engineering Thermoplastic |
| Voltage Drop | 20 m V |
| Pitch | 3.50 X 2.54 mm |
| Screw | Screwless |
| Wire size | 0.2 - 1.5 mm² |
| Wire Protector | Copper alloy |
| Wire Strip Size | 8.50 - 9.50 mm |
| Solder Pin Size | 0.40 X 0.80 mm |
|
Pitch |
: | 3.5mm x 5mm |
|
Current Rating |
: | 6A,250A,AC |
| Torque | : | NA |
| Wire Size | : |
1.5 mm2 |
Also Available :
- PFT-235
- PFT-250-2.54
- PFT-250-3.5
- SMD-2060
Prime PCB Terminal Block in Mumbai,Pune,Vasai,Vashi,Thane,Valsad,Vadodara.
The Only Official prime Dealer In Maharashtra.
prime Components is one of the leading manufacturers of terminal blocks and connectors for PCB applications.
PrimeComponents Dealership in PCB Terminal Block Distributer in Tamilnadu.
Good Quality PCB Terminal Block.Good Quality PCB Connector.
CONNECTORS/TERMINALS BLOCKS
Brand:
Prime
Sub Category:
Screw Less Terminal Blocks
Pitch:
3.5mm x 5mm
Part Number:
PFT-250-3.54
Nominal rating:
6A/250V
Type:
Screw Less
Wire size:
0.2 - 1.5mm²
Maximum Torque:
NA.
Screw:
Screw Less
Specification:
Technical Description: Current/Voltage Rating 6A / 250V AC Test Class IEC 60947 - 7 - 1 Insulation Resistance > 1000M ohms at 500V DC Dielectric Strength >3 KV Min. Moulded Material Engineering Thermoplastic Voltage Drop 20 m V Pitch 3.50 X 2.54 mm Screw
Rated Current:
6A.
Rated Voltage:
250V.
Country of Orgin:
INDIA
Dielectric Strength:
>3Kv
Brand / Make:
PRIME
