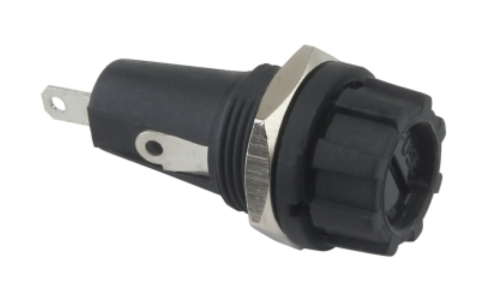

Prime Fuse Holder FH-R (Metal Nut)
Technical Specifications:
1.Mounting style: Panel, Snap up.
2. Permissible Temp.with/Without load: 0°C to +85°C
3. Permissible Temp. for Soldering: 270° for 5 seconds max.
4. Panel Thickess(Max.): 3mm max.
5. Material: Engg. Thermoplastic
6. Insulation Resistance: 1000 M Ohms min.
7. H.V. Break Down: 2KV/AC For 1 Minute.
8. Current Carrying Parts: Brass,Tin Plated.
9. Contact Resistance(Initial): 10 m Ohms max.
10. Cap Design: Screw-In with coin slot.
11. App.Weight(gm): 8.5
12. Fuse Link Size: 5*20mm.
13. Rated Current/Voltage: 10 Amps/250V AC.
14. Terminals: Solder type.
Uses:
Fuse holder are mostly used in following Applications: Power Supplies, Stabilizers, UPS & inverter, Solar lanterns, Water Purifier, Power Controller, Bed side Monitor, De - fabricators, e-bike, medical instrument, Amplifiers etc.
|
Fuse Link |
: | 5 x 20 |
|
Rating |
: |
10A 250V,AC |
|
Type |
: | METAL NUT |
|
Cutout Size |
: |
16.2 MM |
|
Remarks |
: |
FH-R |
Also Available :
- EFH-1M (Metal Nut)
- EFH-1P (Plastic Nut)
- EHF-1 BakeLite Molding (Metal Nut)
- FH-1
- FH-1S (Snap Mounted)
- FH-6
- FH-6S (Snap Mounted)
- FH-6 BakeLite Molding(Metal Nut)
- FH-7 (COIN SLOT CAP)
- FH-7s (Snap Mounted)
- FH-R
