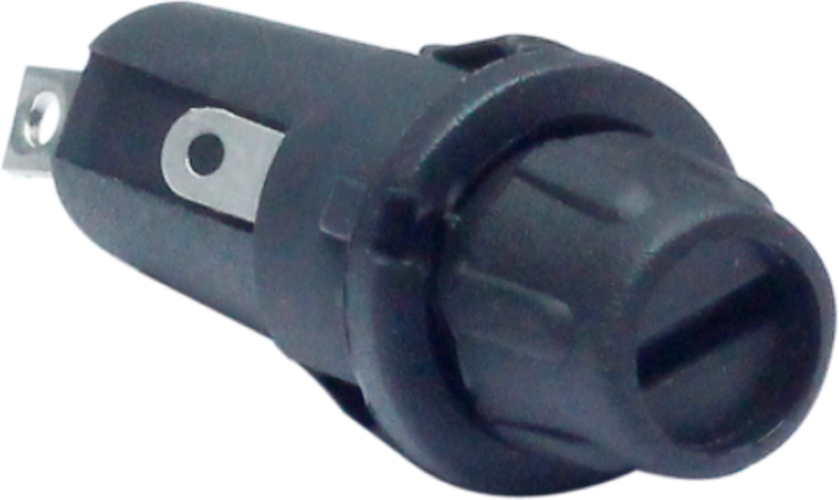

Prime Fuse Holder FH-7S (Snap Mounted)

Technical Specifications:

1.Mounting style: Panel, Screw in.

2. Permissible Temp.with/Without load: -20°C to +85°C

3. Permissible Temp. for Soldering: 270° for 5 seconds max.

4. Panel Thickess(Max.): 2mm max.

5. Material: Polyamide G.F.

6. Insulation Resistance: 1000 M Ohms min.

7. H.V. Break Down: 2KV/AC For 1 Minute.

8. Current Carrying Parts: Brass,Tin Plated.

9. Contact Resistance(Initial): 10 m Ohms max.

10. Cap Design: Screw-In .

11. App.Weight(gm): 4.5

12. Fuse Link Size: 5*20mm.

13. Rated Current/Voltage: 6.3 Amps/250V AC.

14. Terminals: Solder type.



Uses:

          Fuse holder are mostly used in following Applications: Power Supplies, Stabilizers, UPS & inverter, Solar lanterns, Water Purifier, Power Controller, Bed side Monitor, De - fabricators, e-bike, medical instrument, Amplifiers etc.



Fuse Link

: 5 x 20

Rating

:

6.3A 250V,AC

Type

: Snap Mounted

Cutout Size

:

12.6 MM

Remarks

:

FH-7

Also Available :

  • EFH-1M (Metal Nut)
  • EFH-1P (Plastic Nut)
  • EHF-1 BakeLite Molding (Metal Nut)
  • FH-1
  • FH-1S (Snap Mounted)
  • FH-6
  • FH-6S (Snap Mounted)
  • FH-6 BakeLite Molding(Metal Nut)
  • FH-7 (COIN SLOT CAP)
  • FH-7s (Snap Mounted)
  • FH-R

Prime Fuse Holder Dealer In Nagpur, Kollata, Nashik, Meghalaya, Madhubani.



prime-fuse-holder-fh-7s-snap-mounted

FUSE HOLDER

Brand:
Prime
Sub Category:
Pannel Type
Part Number:
FH-7S
Nominal rating:
6.3A, 250V AC
Cutoff Size:
12.6mm
Type:
Snap Mounting
Terminals:
Solder
Specification:
Technical Specifications: 1.Mounting style: Panel, Screw in. 2. Permissible Temp.with/Without load: -20°C to +85°C 3. Permissible Temp. for Soldering: 270° for 5 seconds max. 4. Panel Thickess(Max.): 2mm max. 5. Material: Polyamide G.F. 6. Insulatio
Rated Current:
6.3A.
Rated Voltage:
250V.
Country of Orgin:
INDIA
Application:
Inverter
Permissible Soldering Temperature:
270 C for 5 sec max
Brand / Make:
PRIME
