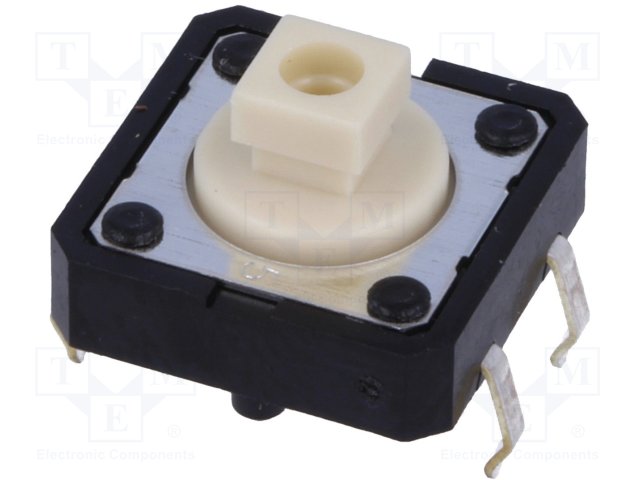

Omron B3F 4050 Tactile Switch
| Categories | Switches | |
|---|---|---|
| Tactile Switches | ||
| Manufacturer | Omron Electronics Inc-EMC Div | |
| Series | B3F | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, Vertical | 7.30mm | |
| Actuator Length, Right Angle | - | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 12.00mm x 12.00mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Operating Force | 130gf | |
| Ingress Protection | - | |
| Features | - | |
| Operating Temperature | -25°C ~ 70°C | |
| Actuator Material | - | |
| Switch Travel | 0.30mm | |
| Mechanical Life | 3,000,000 Cycles |
Omron Tac Switch In India, Chennai.
SWITCH
Brand:
Omron
Sub Category:
Tactile Switch(Tact Switch)
Nominal rating:
0.05A 24V
Specification:
1. Rating (resistive load) 1 to 50 mA, 3 to 24 VDC (B3F-G: 100 μA to 50 mA, 3 to 24 VDC) 2. Minimum applicable load (reference value) 10 μA at 1 VDC (resistive load) 3. Ambient operating temperature -25°C to +70°C at 60%RH max. (with no ici
Rated Current:
0.05 Ampere
Rated Voltage:
24VDC
Colour Available:
Yellow
Operating Tempearture:
-25°C ~ 70°C
